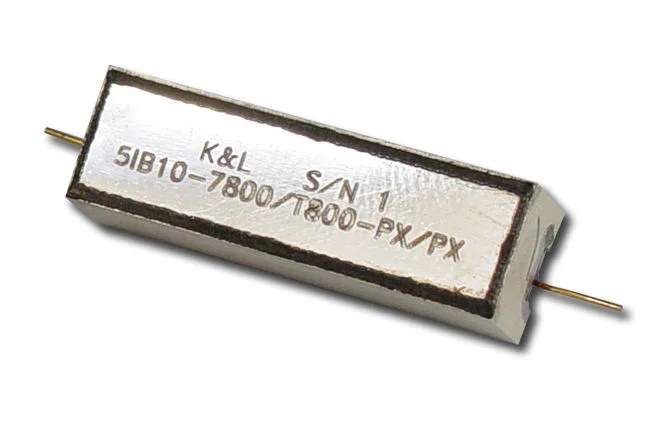

IB Series - 5IB10-7800/T800-PX/PX

MPG_KLM_FL_BP_FIX_LE_MUL_5IB10-4800-T800-PX-PX

Overview

Product SKU ID :

Product Name : 5IB10-7800/T800-PX/PX

Low Profile / Surface Mount

High Frequency, Lumped Element

Secure Ground and Airborne Communications

Military and Commercial Airborne

Ground Base Radar

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

f 0	3.0 dB BW	Insertion Loss	Rejection	Max power	Size
4750 & 7800 MHz	800 MHz	<2.0 dB	5 Pole response	+10 dBm	1.0”L x 0.3”W x 0.24”H
