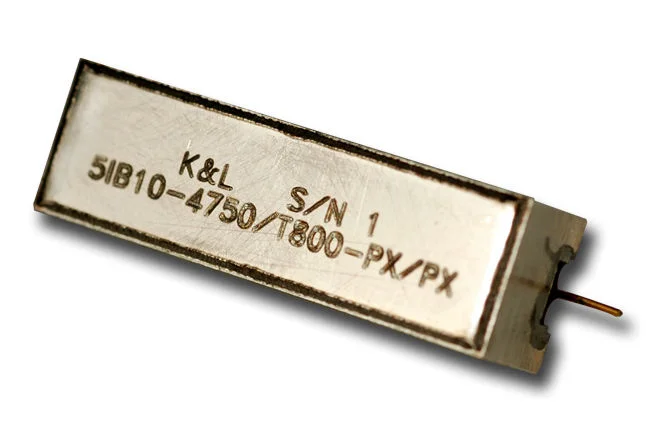

IB Series - 5IB10-4750/T800-PX/PX


MPG_KLM_FL_BP_FIX_LE_MUL_5IB10-4750-T800-PX-PX

Overview

Product SKU ID :

Product Name : IB Series - 5IB10-4750/T800-PX/PX

Low Profile / Surface Mount

High Frequency, Lumped Element

Secure Ground and Airborne Communications

Military and Commercial Airborne

Ground Base Radar

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

f 0 3.0 dB BW Insertion Loss Rejection Max power Size
4750 & 7800 MHz 800 MHz <2.0 dB 5 Pole response +10 dBm 1.0”L x 0.3”W x 0.24”H

Resources

Featured Brand

KL_Logo

K&L Microwave

Since 1971, we’ve aggressively invested in innovation to deliver interference mitigation products built to even the most exacting specifications. By taking control of the internal design and production processes, K&L Microwave can work collaboratively with customers, employing our high-quality standards and industry expertise to develop custom solutions across a full line of applications.

Our line of filters, duplexer, and subassemblies includes multiple topologies, including Ceramic, Lumped Element, Cavity, Waveguide, and Tunable Filters.
