3IB10-487.5/TX9.8PX (Extremely Low Profile)

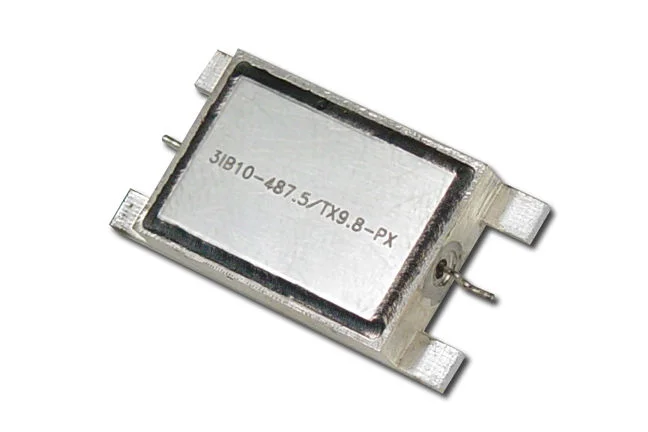

MPG_KLM_FL_BP_FIX_LE_MUL_3IB10-487.5-TX9.8-PX

Overview

Product SKU ID :

Product Name : 3IB10-487.5/TX9.8-PX

0.150" Vertical Height / Extremely Low Weight

Low Insertion Loss - Pin Input/Output

Rugged Design for Military Applications

Sealed for Harsh Environments / Custom Designs Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

3 dB BW	Insertion Loss @ 487.5 MHz	Maximum Power	Rejections:					In & Out VSWR @ 487.5 MHz
			10 dB	30 dB	35 dB	30 dB	30 dB
482.6 - 492.4 MHz	7.5 dB	2 watt	469.5 & 505.5 MHz	389.5 & 585.5 MHz	107.5 & 867.5 MHz	DC to 107.5 MHz	867.5 to 1500 MHz		1.5:1

Environmental Capabilities				Mechanical Specifications:
Operating Temperature	Leak Rate	Mechanical Shock	Random Vibe	Dimensions	Finish
-40°C to +85°C	1 x 10-6	20 G’s, 1/2 Sine, 11 Ms	10 G’s, 10-2000 Hz	1.0” x 0.5” x 0.150” Gullwing with tabs	Bright silver with clear irridite on welded cover surface
