TCOM 422-02

Overview

Product SKU ID :

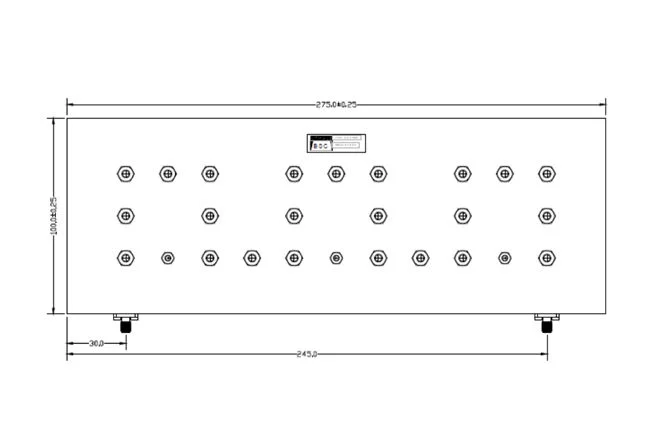

Product Name : TCOM 422-02

BSC have a wide range of components that have been designed for the Telecom Industry. The TCOM 422 filter offers a passband for DCS / GSM 1800 cellular telephony transmitters or DCS telephony jammers. Downlink frequencies are protected by over 75 dB of isolation.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Passband Flatness in any 2.5MHz	Return Loss	Rejection from		Power Handling	Operating temperature	Connectors	External Finish
1.805 to 1.88 GHz	1.2 dB max	±0.35 dB max	14 dB min	1.7 to 1.785 GHz	1.9 to 1.98 GHz	+47 dBm max	0 to 40°C	SMA Female	Matt Black
				75 dB min	75 dB min
