S BAND RECEIVE FILTER

SATCOM 349-01

Overview

Product SKU ID :

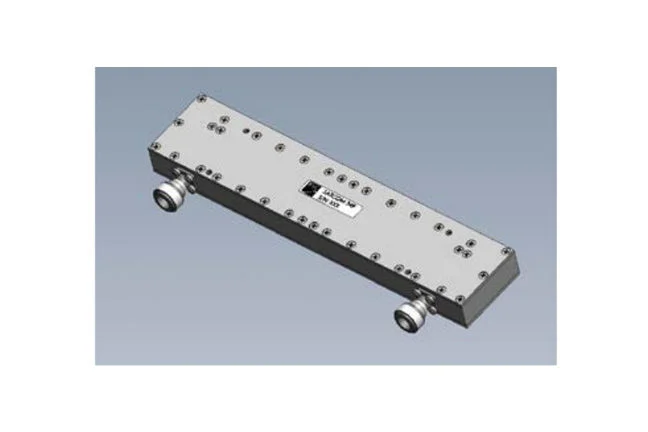

Product Name : SATCOM 349-01

When receiving S Band satellite downlink TT&C ranging and payload data, the BSC SATCOM 349 has been specifically designed to offer compact size, low insertion loss and high rejection of all HF, VHF and SHF channels outside its passband.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC's Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market Categories

Defense Aerospace Communications GPS

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 10 MHz to 2.11 GHz	Rejection from 2.4 to 3.0 GHz	Power Handling	Operating temperature	Connectors	External Finish
2.2 to 2.29 GHz	0.8 dB max	17 dB min	110 dB min	90 dB min	20 W max	-20 to 50°C	N-type Female	Matt Black
