S BAND RECEIVE FILTER

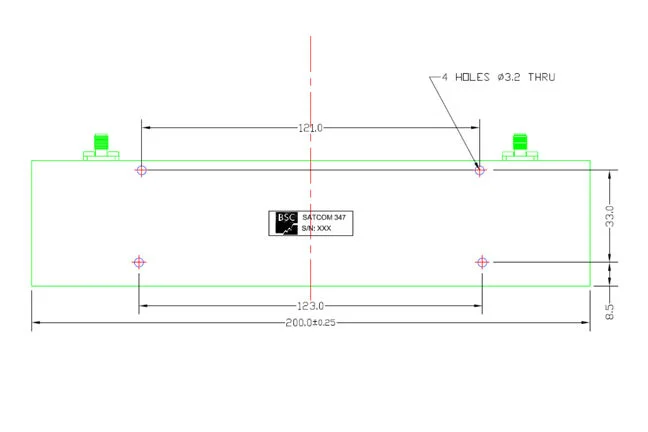

SATCOM 347-02


MPG_BSC_FL_BP_FIX_CB_CM_SATCOM-347-02

Overview

Product SKU ID :

Product Name : SATCOM 347-02

When receiving S Band satellite downlink TT&C ranging and payload data, the BSC SATCOM 347 has been specifically designed to offer compact size, low insertion loss and high rejection of all HF, VHF and SHF channels outside its passband.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the durable packaging and high performance, BSC's Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Market Categories

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications Section

PassbandInsertion LossReturn LossRejection from 10 MHz to 2.11 GHzRejection from 2.4 to 3.0 GHzPower HandlingOperating temperatureConnectorsExternal Finish
2.2 to 2.29 GHz1.0 dB max17 dB min100 dB min90 dB min20 W max-20 to 50°CSMA FemaleMatt Black
