RADAR 464-02

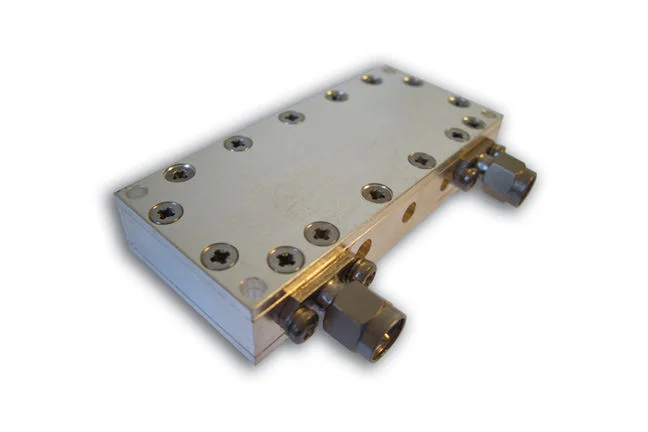

MPG_BSC_F_BP_Fixed_Combline

Overview

Product SKU ID :

Product Name : RADAR 464-02

Designed specifically for X Band radars, its high power handling capability, extremely compact size and extended stopbands ensure this filter is ideally suitable for X band transmitters.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the durable packaging and high performance, BSC Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Passband

Insertion Loss

Return Loss

Rejection from

Power Handling

Operating temperature

Connectors

External Finish

1.0 to 6.0 GHz13.0 to 24.0 GHz
8.5 to 10.5 GHz 2.0 dB max14 dB min60 dB min60 dB min2 kW peak

-20 to 70°C

SMA Female

Matt Black

Resources

Featured Brand

BSC_Logo

BSC

BSC is based in York, UK, BSC offers its full range of non-ITAR products to the RF global marketplace, whether for small quick turn development runs or high volumes associated with series production of phased array RADAR and EW systems and commercial market place needs. A small selection of the active microwave assemblies and modules offered include front end preselectors, Switched Filters for Antenna front ends, IF assemblies, DRFM front ends, adaptive filtering including switched multiplexers, switched filter banks, and Software Defined Radio filter assemblies.
