Product Name : GPS 513-01

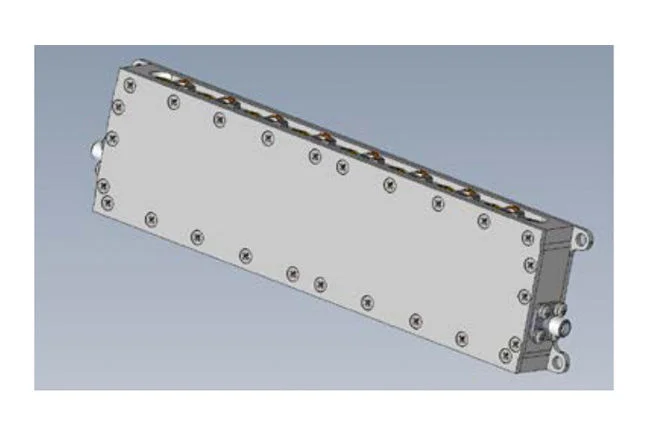

BSC offer a wide range of high performance filters for GPS applications. The GPS 513 filter is a narrowband bandpass filter designed to work with GPS L1 frequencies. Offering low insertion loss and exceptional out of band rejection this filter lends itself well to integration with receiver systems providing excellent protection from adjacent high power transmitters.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the durable packaging and high performance, K&L Microwave Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Center Frequency

3 dB Bandwidth

Insertion Loss at Centre Frequency

Group Delay Variation over 34 MHz

Return Loss over 34 MHz

Rejection from

Power Handling

Operating temperature

Connectors

Finish
1170 to 1510 MHz 1510 to 1538.5 MHz 1538.5 to 1548 MHz 1603 to 1612.5 MHz 1612.5 to 1646.5 MHz 1646.5 to 1930 MHz
1575.42 MHz 40 MHz 3.0 dB max 23 ns max 20 dB min  80 dB min  40 dB min 25 dB min 25 dB min 40 dB min 80 dB min



0 dBm max



10 to 30°C

SMA Female Matt Black
