GPS BANDPASS FILTER

GPS 511-01

Overview

Product SKU:

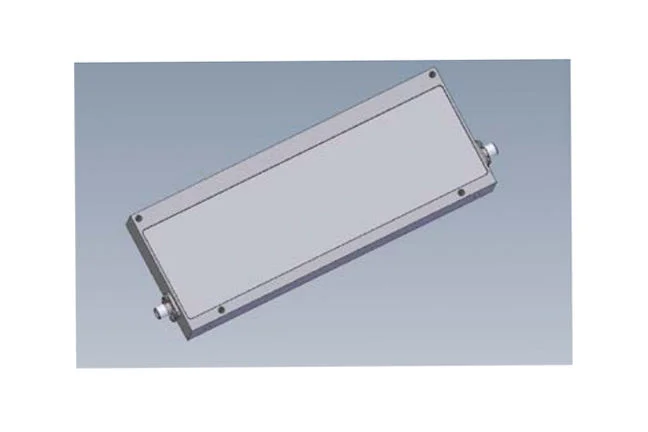

Product Name: GPS 511-01

BSC offer a wide range of high performance filters for GPS applications. The GPS 511 filter is a narrow band bandpass filter designed for GPS L5 frequencies. Offering low insertion loss and exceptional out of band rejection this filter lends itself well to integration with avionics receiver systems.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, K&L Microwave Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Passband Insertion Loss at 1176.5 MHz	Passband Flatness	Return Loss	Rejection				Power Handling	Operating temperature	Connectors	Finish
				from 100 to 1138 MHz	at 1155.5 MHz	at 1196.5 MHz	from 1214 to 2600 MHz
1164.5 to 1188.5 MHz	2.7 dB max	±1.0 dB max	16 dB min	80 dB min	10 dB min	10 dB min	80 dB min	1 W CW max	-40 to 50°C	SMA Female	Matt Black
