Mini-Pack - 8MP20-7140/H500-PX/XX

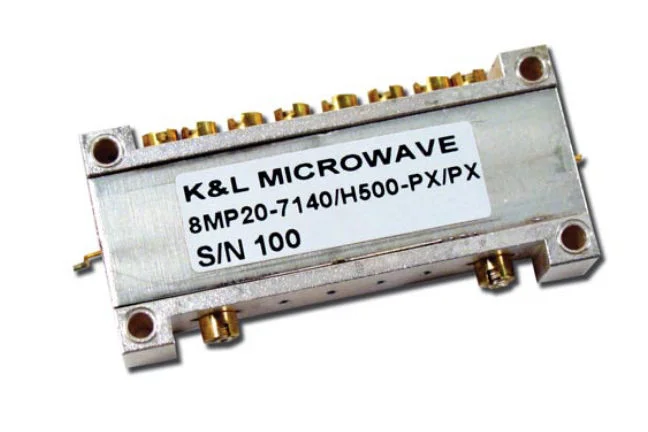

MPG_KLM_FL_BP_FIX_CB_SP_8MP20-7140-H500-PX-PX

Overview

Product SKU:

Product Name: 8MP20-7140/H500-PX/PX

Gull Wing Surface Mount RF Pins

Meets Military Environmental Requirements

45% Weight Reduction from Standard Combline Design

40% Volume Reduction from Standard Combline Design

Space Flight, Airborne, Shipborne or Vehicle Mount

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, K&L Microwave Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Center Frequency	Insertion Loss at Center Frequency	.5 dB Bandwidth	Attenuation:	40 dB minimum
7140 MHz	1.5 dB maximum	500 MHz minimum		6600 & 7640 MHz
