RF Analysis

MPG's RF analysis helps you design communication solutions for first time success.


Overview

Mission-critcal platforms employ several RF communications channels to ensure force coordination over long distances. Unbeknownst to the operator/warfighter, often these critical communication distances are not realized due to self-generated or cosite interference. This degradation has, at its source, insufficient antenna isolation on the platform, lack of transmitter spectral purity and receiver vulnerability to desensitization from local interference. Therefore, antenna placement, transceiver selection and cosite interference mitigation techniques are central to ensuring full communications range is realized.

To meet these challenges, MPG Solutions® offers our system integration customers a “turnkey” source for solutions to the challenges of antenna placement optimization and RF cosite interference mitigation in shipboard, airborne and vehicular applications.

Browse Products

Featured Brand

MPG Solutions Logo

Quick Facts:

RF Analysis offers expert assistance in determining the level of interference mitigation required for a specific application. The goal of the analysis is to work with closely with our systems integrators to ensure maximum communications range and channel availability given the SWaP-C constraints.

Determines optimal communications hardware selection

Determines minimal channel frequency seperation

Provides detailed platform antenna placement optimization

Investigates minimal link budget margins

RF Analysis Technologies

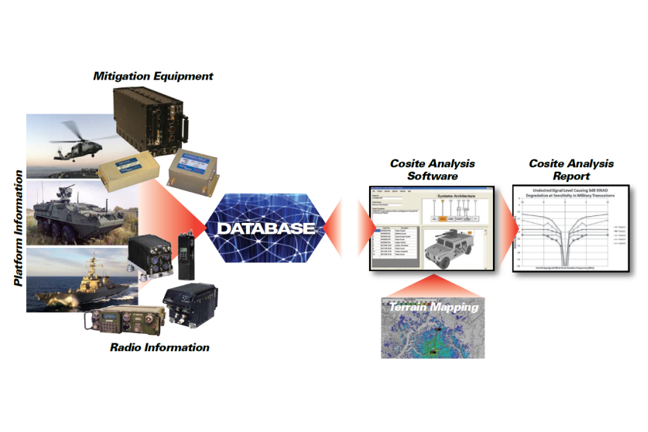

MPG offers an RF & Cosite Interference Analysis solution uses Platform Information such as Antenna Information, Radio Performance, and Operational Requirements to provide a full RF Analysis report that includes:

  • Satement of the problem
  • Analysis of the scenario setup
  • List of assumptions and source data
  • Description of interference mechanisms and mitigation technique
  • Terrain coverage maps
CAI

Facility & Capabilities

Utilizing our modern, well equipped facilities, state of the art software tools and test equipment, MPG’s trained staff of engineering and manufacturing professionals can provide a wide array of value-added services, including:

  • Co-site analysis and site surveys
  • Radio characterization
  • Qualification testing
  • Environmental Stress Screening (ESS)
  • High Altitude Life Testing (HALT)
  • EMI Testing
  • Reliability Modeling
  • Data Items
  • Program Management
  • Integrated Logistics Support (ILS)
  • Repair and maintenance
MPG-PZ_Facility
MPG_Ask_Engineer_Home

Our team is composed of highly-technical engineers empowered to quickly assist you in identifying a high-performance RF/microwave solutions. Whether it is a modular, tailored design or a custom, highly-integrated, multi-function assembly, we will actively engage with you to provide the best value without compromising performance. Contact our engineers today to start the collaborative process!

Featured Products & Solutions

cancellers

Interferene Mitigation

For severe cosite interference issues, MPG Solutions® Interference Mitigation Equipment provides significant improvements in dynamic range, increasing the range of communication equipment in the presence of local interferers.

Learn More

ICEClass

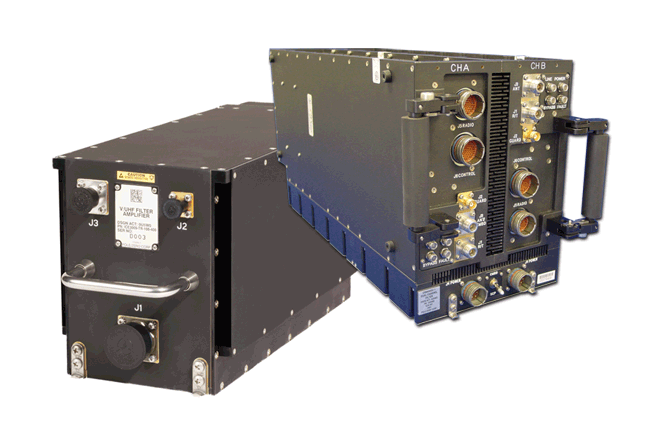

Filter/Amplifier Cascades

MPG Solutions® Agile Filter Amplifier Cascade devices significantly improve range and reduce interference where receiver desensitization is a challenge.

Learn More

ice3001-400x400

ICE3001

ICE3001 provides multiple poles of RF selectivity to reduce broadband noise, harmonics, and spurious signals for either receive or transmit applications. This filter is a highly integrated design incorporating complete Built-in-Test capability. The design has been qualified for military applications. A dual-mount tray is also available as an option for easy incorporation on your platform. Cost-effective modifications are available on the ICE3001.

Learn More
