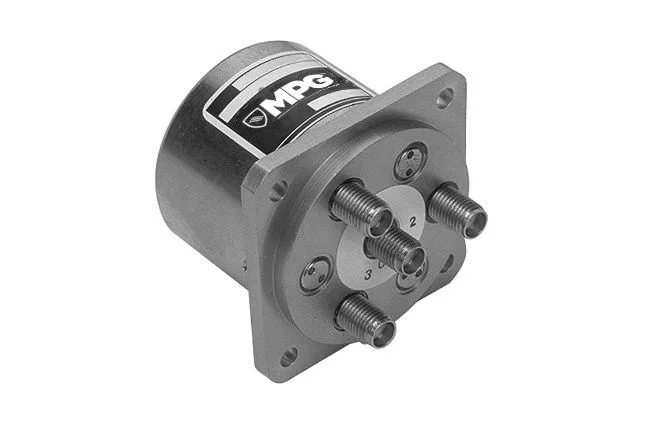

535-530802A-ROHS

SPnT Coaxial Switch

Overview

Part Number : 535-530802A-ROHS

The 565-Series part number 535-530802A-ROHS SPnT coaxial switch switch is ideal for DC to 18GHz applications with 1.50 @ 18 GHz VSWR performance and 50 Ohm impedance. It features normally open actuator, 28 VDC coil voltage, and SMA female connector, and it requires 24V ~ 32V voltage supply. Additionally, it has TTL drive circuit options, no indicators and no special options.

Request For Quote

Product Specifications

Frequency GHZ

VSMR

(MAX)

Isolation dB

(min)

Insertion Loss dB

(max)

Coil Voltage

Circuit Options

Actuator Type

Indicators

Connector

Operating

Temperature

DC to 18GHz

1.50 @ 18GHz

60dB @ 18GHz

.50dB

28 VDC

TTL

Normally Open

No indicators

SMA female

-25°C ~ 65°C

Additional Specifications

Switching Time:
15 ms maximum
Mechanical Life Cycles*:
1,000,000 minimum
5,000,000 minimum (“U” Option
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
30G, 1/2 Sine, 11 ms

* Performance and weight varies depending on selected options. Values listed
are for Standard 401 Failsafe model.

IEEE Frequency Bands

HF-Band VHF-Brand UHF-Band L-Band

S-Band C-Band X-Band Ku-Band

Markets

Defense Aerospace Communications GPS ATE
