Quadraplexer Fixed Multiplexer

Overview

MPG's Quadraplexes deliver when applications call for a small but durable package size and high performance.

L band, S band, C band, S band, and Ku band versions in bandpass, bandstop, highpass, and lowpasss configurations.

Frequency Range: HF, VHF, UHF band covering frequencies of 2 GHz to 18 GHz.

Bandwidth: L band, S band, C band, S band, and Ku band

Find Products Catalog

About The Technology

Quadraplexer(4)

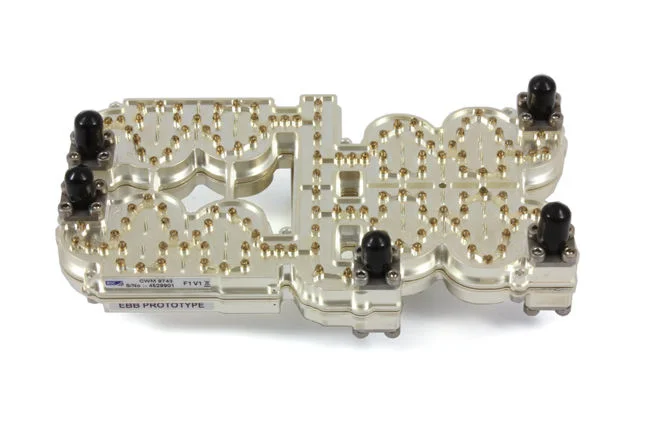

As with other Fixed Filter Multiplexers, a Quadraplexer is designed to split signals originating from a single port into multiple specified frequencies. In the case of a Quadraplexer, one input signal is separated across 4 different outputs. Quadraplexes can be constructed using various topologies to meet size, weight and power requirements.

Product Inquiry

Featured Brands

K&L Microwave

BSC

Features & Specifications

Quadraplexer frequency: HF, VHF, UHF band covering frequencies of 2 GHz to 18 GHz.

Quadraplexer features: Quadruplexes are available in bandwidths from x% to x% with insertion loss of 2.5 dB. Filters can be constructed in x to x sections in a Q range from XX to XX , in fixed filter bandpass, bandstop, highpass, and lowpasss configurations.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Versatility and high performance make our Quadruplexes applicable for multiple markets, including defense, EW, RADAR, communications, SATCOM, and automated test equipment.
