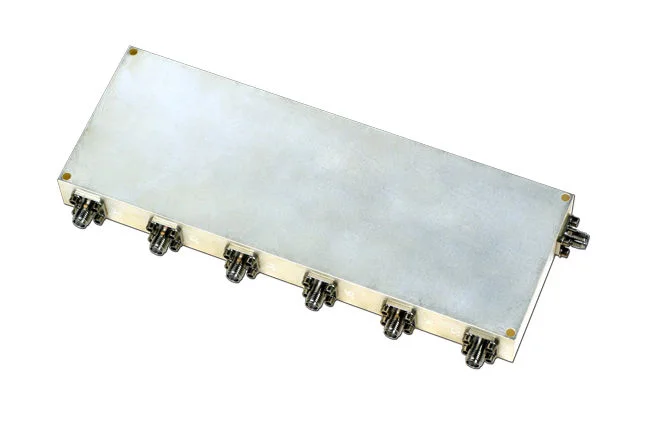

6-Channel Fixed Multiplexer

Overview

Operating as a Multiplexer, each 6-channel multiplexer is custom designed to ensure optimized fit and performance.

L band, S band, C band, S band, and Ku band versions in bandpass, bandstop, highpass, and lowpasss configurations.

Frequency Range: DC to 40GHz

Find Products Catalog

About The Technology

6-Channel Multiplexer

A 6-Channel Multiplexer splits signals from a common input into 6 different outputs according to frequency. They can be constructed using various topologies to meet size, weight and power requirements.

Product Inquiry

Featured Brands

K&L Microwave

BSC

Features & Specifications

6-Channel Multiplexer frequency: DC though HF, VHF, UHF, and up to Ku band covering frequency ranges of DC to 40GHz.

6-Channel Multiplexer features: Multiplexers are realised in different technologies, such as Lumped Element, Combline and Suspended Stripline ( Q’s ranging from 200 to 2000 dependant on technology) and available as ‘open’ or ‘closed’ configurations to suit customer needs. Narrowband to broadband passbands can be offered, with designs being contiguous or non-contiguous.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Delivering versatile performance, our 6-Channel Multiplexers are applicable for multiple markets, including defense, EW, RADAR, communications, SATCOM, and automated test equipment.
