LL Series - 6LL10-400/1200-N/NP

MPG_KLM_FL_LP_FIX_LE_MUL_6LL10-400-1200-N-NP

Overview

Product SKU ID :

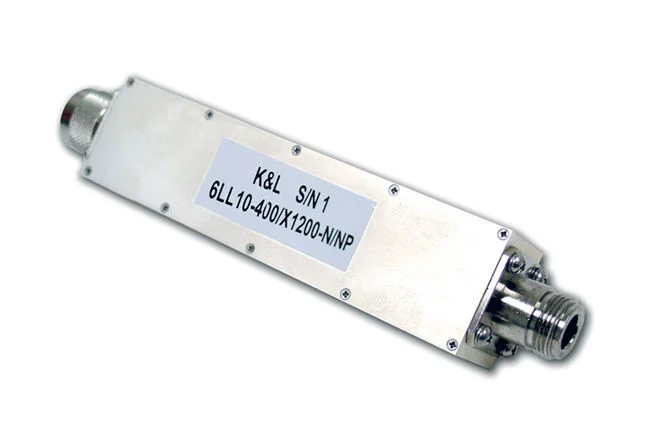

Product Name : 6LL10-400/1200-N/NP

Type N Connectors
Shape Factor 1.03:1
Ultimate Rejection
Low Loss

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the innovative and customizable nature of K&L Microwave Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Communications ATE

Product Specifications

Insertion Loss	Stopbands	@412 MHz	@450 to 1200 MHz	Environmental Specs				Dimensions
				Shock	Vibration	Temperature	Relative Humidity
<1.0 dB	15 dB min.	>15 dB	>40 dB	20 G’s, 1/2 Sine, 11mS	10 G’s, 10 Hz - 2000 Hz	-55 to +85° C	0-95%	5.0" X 1.25" X 1.0"
