COAXIAL NOTCH FILTER

BROAD 473-01

Overview

Product SKU:

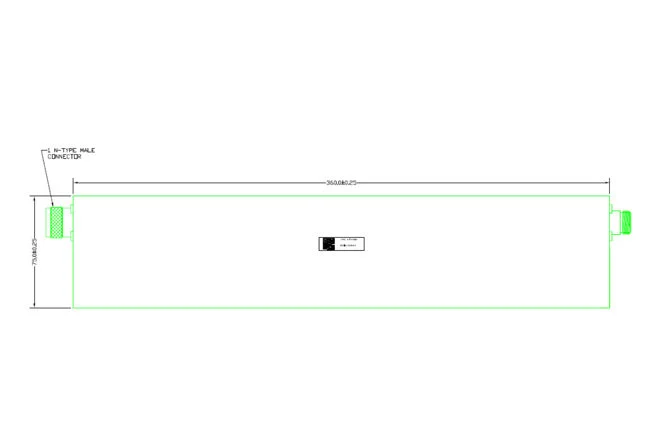

Product Name: BROAD 473-01

For Satellite Tracking and Command uplinks as well as downlink Data and Telemetry, the BROAD 473 filter is ideally suited as it offers full band coverage, low insertion loss, high power handling suitable for Tx uplinks and good broadband rejections. Finished in gloss white it is ideally suited to external antenna mounting.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

K&L Microwave RF Mixed Technologies Filters are tailored to end-user specifications and designed to meet custom needs across a number of industries, including the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Passband	Insertion Loss	Return Loss	Rejection from 2.11 to 2.17 GHz	Power Handling	Operating temperature	Connectors	External Finish
DC to 2.1 GHz	2.2 to 3.0 GHz	1.5 dB max	12 dB min	40 dB min	2 W max	-5 to 30°C	N-Type Female	Gloss White
