GPS NOTCH FILTER

GPS 515-01

Overview

Product SKU:

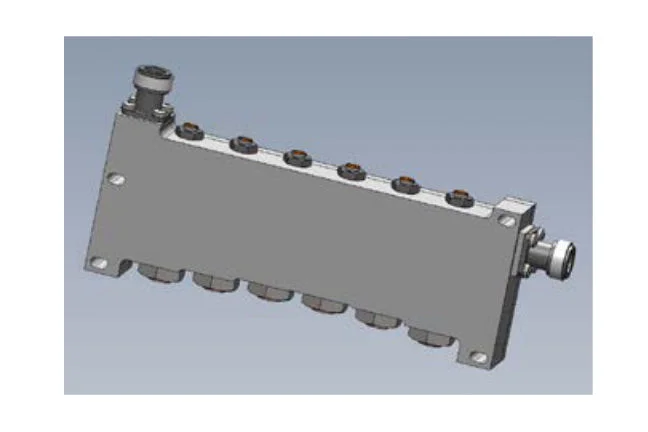

Product Name: GPS 515-01

BSC offer a wide range of high performance filters for GPS applications. The GPS 515 filter is a ruggedized notch filter with a wide passband designed to be fitted on the output of high power cellular suppression systems allowing simultaneous operation of high power transmitters whilst protecting co-located GPS L1, Iridium and INMARSAT receivers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband		Passband Insertion Loss	Return Loss	Rejection			Power Handling from 420 to 2700 MHz	Operating temperature	Connectors	Finish
				from 1525 to 1559 MHz	1570 to 1581 MHz	1616 to 1627 MHz
869 to 960 MHz	1805 to 1990 MHz	0.5 dB max	12 dB min	70 dB min	60 dB min	50 dB min	80 W CW into any VSWR	-40 to 60°C	N-Type Female	Matt Black
