GPS COAXIAL NOTCH FILTER

GPS 474-01

Overview

Product SKU:

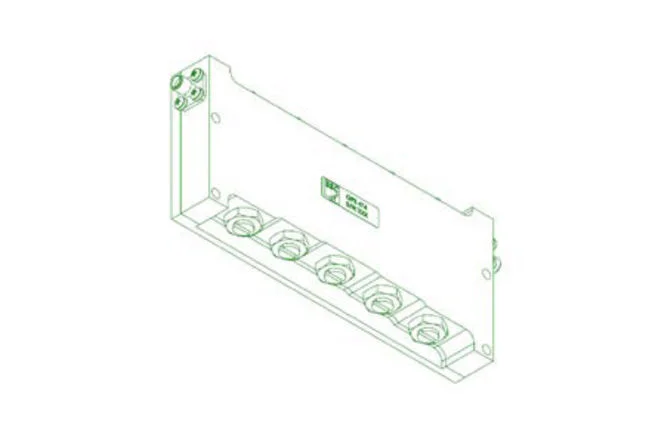

Product Name: GPS 474-01

BSC offer a wide range of high performance filters for GPS applications. The GPS 474 filter is a ruggedized wideband bandpass filter with integrated notch designed to be fitted on the output of high power transmitter systems allowing simultaneous operation of a high power emitter whilst protecting co-located GPS L1 receivers by over 80dB.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Due to the durable packaging and high performance, BSC Combline Filters are ideal for a variety of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband		Passband Insertion Loss	Return Loss	Rejection at 1575.42 MHz ± 1 MHz	Power Handling	Operating temperature	Connectors	External Finish	Dimensions
DC to 1545.42 MHz	1605.42 to 2600 MHz	1.0 dB max	14 dB min	80 dB min	100 W CW max	-40 to 70°C	SMA Female	Matt Black	448.2 x 271 x 63.4 mm
