7DL35-1960/NX60

Notch Filter


MPG_KLM_FL_BR_FIX_CE_MUL_7DL35-1960-NX60

Overview

Product SKU

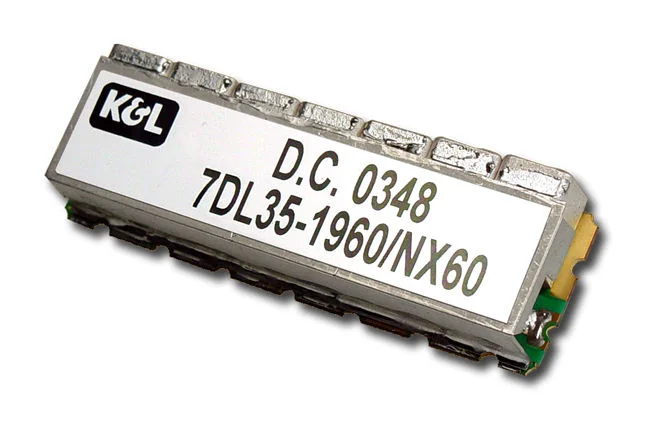

Product Name: 7DL35-1960/NX60

Ceramic Resonator PCS Band Reject Filter (6 mm)

Compact size: 1.75" x .58" x .27"

Surface Mount

High "Q" low insertion loss vs. mechanical size

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Test Image Card

Product Specifications

Center Frequency Passbands Passband loss Passband return loss 30 dB Bandwidth Operating temperature
1960 MHz 1000 - 1880 MHz 2005 - 2500 MHz 3.0 dB max. 14 dB min. 60 MHz > 60 dB @ f0 -40° - +85°C
