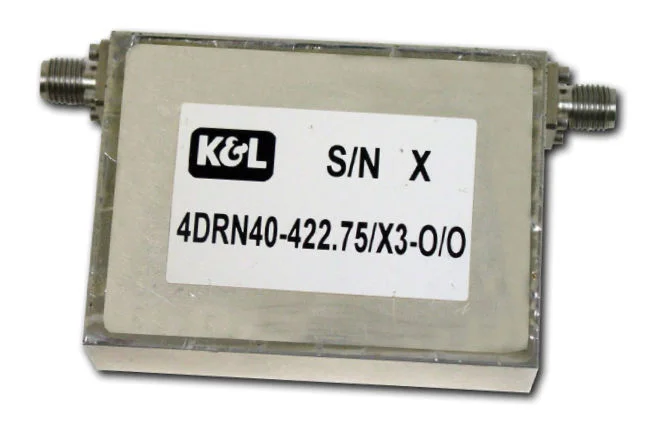

4DRN40-422.75/X3-O/O

High Power Ceramic Bandreject Filter

Overview

Product SKU:

Product Name: 4DRN40-422.75/X3-O/O

Lower Insertion Loss

Power Handling Capabilities: 100 Watts CW

Ultimate return is 1.9 times Center Frequency

Various Military Applications

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Power Handling	Stepband Rejection:	Passband Insertion Loss:				Dimensions
Power Handling	421.25 - 424.25 MHz	20 - 414 MHz	431.5 - 800 MHz	415 - 419.25 MHz	426.25 - 430.5MHz	Dimensions
100 Watts CW	25 dB	0.6 dB	0.6 dB	2.5 dB	2.5 dB	2.25” L x 1.66” W x 0.60” H =-smaller than equivalent cavity	(4.750” L x 1.13” W x 2.375” H) (both sizes exclude connectors)
