WSN-00449

Weather-Sealed Band 5 Public Safety Notch Filter

Overview

Product SKU:

Product Name: WSN-00449

Protects Band 5 (862-869 MHz) from Band 27

High Q Design; Sharp Roll-Off

Low iNsertion Loss in Passbands

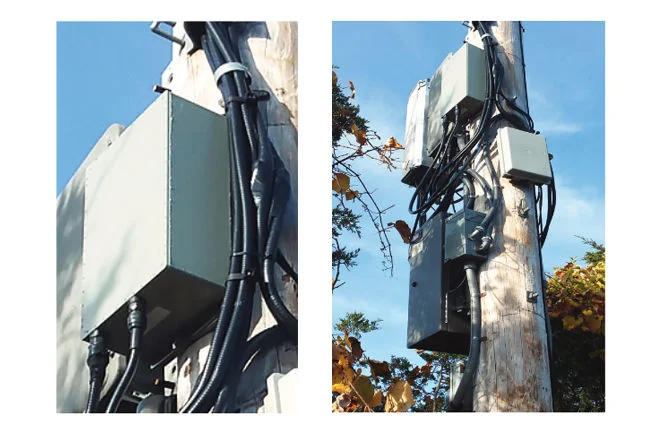

Weather-Sealed for Outdoor Use

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Insertion Loss			Input Return Loss	Output Return Loss	Absolute Stopband
0.5 dB max. @ 817 – 824 MHz	1.25 dB max. @ 862 – 863 MHz	0.6 dB max. @ 863 – 869 MHz	16 dB min. @ 862 – 869 MHz and 817 – 824 MHz	16 dB min. @ 862 – 869 MHz and 817 – 824 MHz	12 dB min. @ 861.5 – 861.6 MHz	46 dB min. @ 859 – 861.35 MHz	6 dB min. @ 854 – 859 MHz	26 dB min. @ 861.35 – 861.50 MHz
