WSN-00393

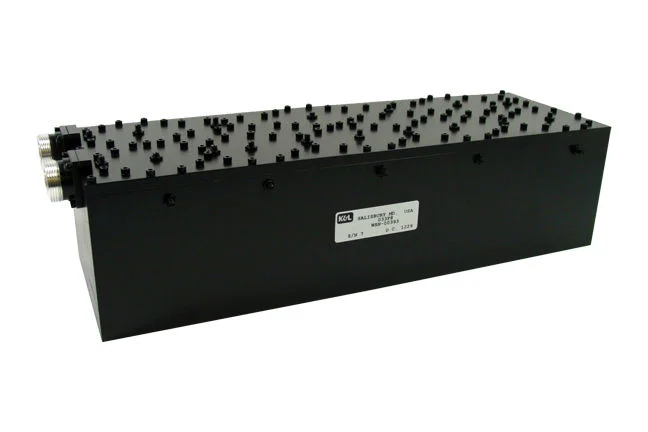

700 MHz Public Safety Notch Filter for LTE Systems

Overview

Product SKU:

Product Name: WSN-00393

Elliptic Response Design; Sharp Roll-Off

High Rejection: 40 dB minimum from 763 to 775 MHz

Insertion Loss: 2 dB maximum in Passbands

Low PIM Performance: less than -150 dBc

CW: 50 Watts Average

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband 1	Insertion Loss	Maximum	Passband 2			Notch		Power Handling:	Passive Intermodulation	Connectors
		Return Loss	776 to 894 MHz	Insertion Loss	Return Loss	763 to 775 MHz	Rejection Required	CW
698 to 757 MHz	2 dB	18 dB Minimum		2 dB Maximum	18 dB Minimum		Minimum 40 dB	50 Watts Average	<-150 dBc (-110 dBm with 2 x 40 dBm tones)	7/16 DIN Female
