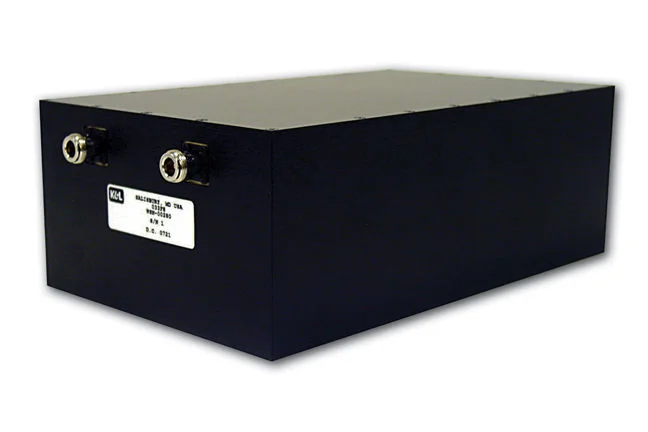

NPSPAC Weather Sealed Notch Filter (DC-846.5 & 869-891.5 MHz)


MPG_KLM_FL_BR_FIX_CA_MUL_WSN-00280

Overview

Product SKU:

Product Name: WSN-00280

A weather resistant, high performance notch filter, providing low loss in frequencies from DC to 846.5 MHz and 869 to 891.5 MHz, while rejecting the 851 to 866 MHz NPSPAC and High Site Channels. Protects Public Safety and/or Cellular sites from receiver de-sensitization.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Test Image Card

Product Specifications

High RejectionLow LossPassbandsPassband Insertion Loss:Passband Return LossRejection:869 - 891.5 MHz Power Handling:Operating TemperatureDimensions (excluding connectors)Connectors
DC - 846.5 MHz869 - 891.5 MHz851 - 866 MHzCWPeak Instantaneous
>40 dB @ 851 MHz1.0 dB Typical @ 846.5 MHzDC - 846.5 MHz869 - 891.5 MHz0.65 dB maximum0.65 dB maximum15 dB maximum37 dB minimum500 Watts10,000 Watts-10 °C to +65 °C12.74” D x 7.36” W x 4.28” H N - F
