WSN-00198

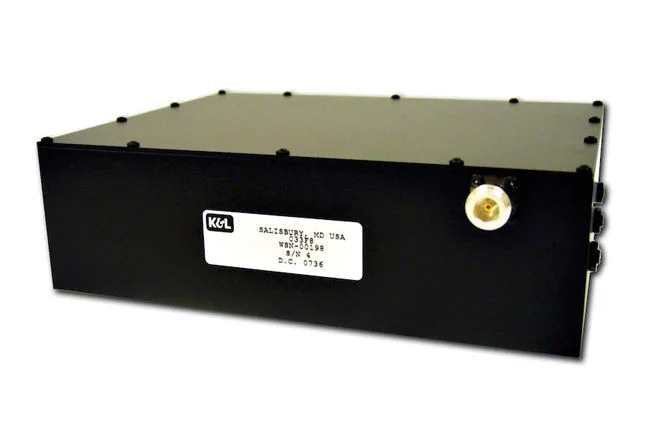

UHF/VHF High Power Notch Filter (100-150 & 154-500 MHz)

Overview

Product SKU:

Product Name: WSN-00198

Positioned at the Output of a VHF-UHF Amplifier

Maintains Low-Loss Passbands

Special Features to Extend the Upper Passband

Mixed Technologies Yield Compact and Rugged Design

Narrowband VHF Hi-Q Bandreject for Interference Mitigation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Frequency Passband(excluding the notch)	Notch Frequency	3 dB Bandwidth	Passband Insertion Loss	Passband VSWR	RF Power Handling			Connectors
100 - 500 MHz	152.24 MHz	1.6 MHz typical	<0.75 dB typical	<1.25:1 typical	600 Watts CW in the	passband	5 Watts CW in the notch	Type N Female
