WSN-00139


MPG_KLM_FL_BR_FIX_CA_MUL_WSN-00139

Overview

Product SKU ID :

Product Name : WSN-00139

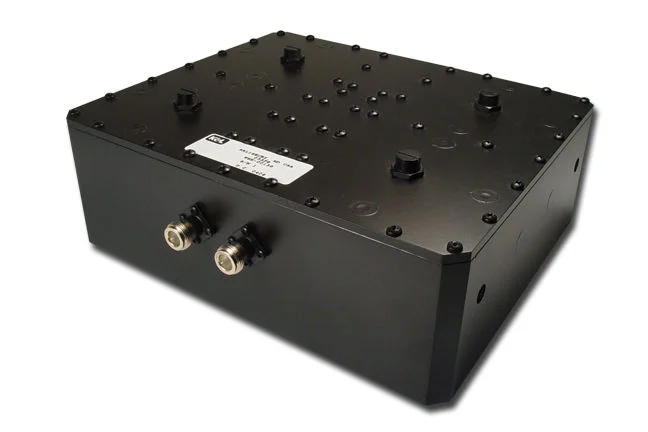

Elliptic Response Ceramic Notch Filter

Can be installed in Duplexed Antenna Feedline

Low Loss in Passbands - 0.75 dB Maximum

Specified Rejection 1 MHz from Passband - 25 dB Minimum

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

PassbandPassband Insertion LossPassband Return Loss

Rejection

943 to 947 MHz

Passband Power HandlingCharacteristic Impedance
800 to 935 MHz935 to 942 MHzCWPeak Instantaneous
800 to 942 MHz0.3 dB max.0.8 dB max.15 dB min.30 dB min.100 Watts1000 Watts50 ohms (in passband)
DimensionsConnectorsOperating Temperature RangeOperating HumidityStorage Temperature RangeFinish
12"W x 8.6"D x 5.9"H (excluding connectors)N-F-10°C to +70°C0 to 90%, Non-condensing-40°C to +85°CShadow black paint
