WSN-00132

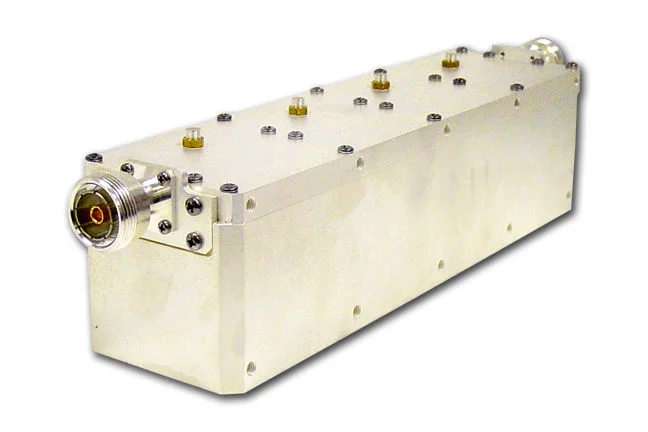

MPG_KLM_FL_BR_FIX_CA_MUL_WSN-00132

Overview

Product SKU ID :

Product Name  : WSN-00132

Extremely Sharp Slope of Transition

between Pass and Reject Points

Very Low Insertion Loss in the Preferred Passbands

Large Power Handling



MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Passband Loss Notch Depth Power Rating IM3 Return Loss Connector Operating Temperture Operating Humidity Dimensions
from 824 to 866 MHz from 866 to 888.7 MHz @ 890 to 892 MHz @ 892 to 894 MHz min.
0.5 dB  <1.5 dB max 35 dB  25 dB  100 W CW; 1500 W Peak -107 dBm @ 2X43 dBm 19 dB min. DIN-F -5° to +60°C 5 to 95% 12.5” x 12.5” x 4”
