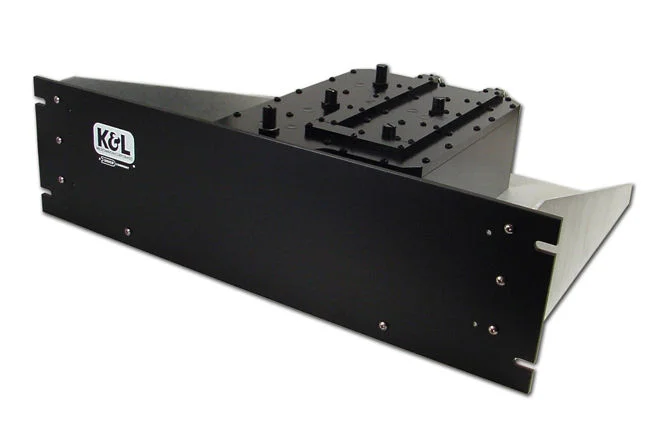

SMR 866-869 MHz Public Safety Notch Filter (806-865 MHz)

Overview

Product SKU ID :

Product Name : WSN-00118

Elliptic Response Design; Sharp Roll-Off

High Rejection; 43 dB minimum from 866 to 869 MHz

Low Loss; 0.7 dB Typical @ 865 MHz

Single, Dual and Triple Configuration

High Passband Power Handling

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Passband Insertion Loss		Passband Return Loss	Rejection 866 - 869 MHz	Passband Power Handling
	806 - 849 MHz	849 - 865 MHz
806 – 865 MHz	0.25 dB max.	1.0 dB max. (0.7 dB typical @865 MHz)	15 dB min.	43 dB min. (46 dB typical)	100 Watts CW, 1500 watts, Peak instantaneous

Operating Temperature Range

Storage Temperature Range

Dimensions

19” Rackmount x 3U H eight x 15” deep

Connectors

Option 1

Option 2

0°C to +50°C

-20°C to +75°C

Up to two filters available per 19”x 3U x 15” rack.

Up to three filters available per 23”x 3U x 15” rack.

N-F (Rear Chassis Access)
