WSN-00084

UMTS Notch Filters (DC-1800 & 2260-2340 MHz)

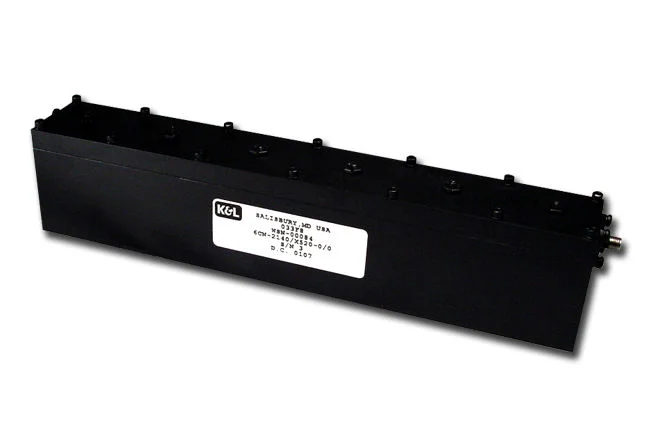

MPG_KLM_FL_BR_FIX_CA_MUL_WSN-00084

Overview

Product SKU ID :

Product Name : WSN-00084

Low Insertion Loss

100 watt CW Passband Power Handling

Excellent Rejection Over Full UMTS Band

Low Intermod Rejection of -120 dBc

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Passband Passband Insertion Loss Passband Flatness Rejection 2110-2170 MHz Passband Return Loss Intremod Rejection Operating Temperature Storage Temperature Operating Humidity Non-condensing Dimensions (excluding connectors) Connectors
DC—1880 MHz 0.5 dB max. 0.25 dB max. 60 dB min. 20 dB min. -120 dBc within reject band at 2 x 33 dB carriers 0°C to 50°C -40°C to 85°C 0% to 90% 10” L x 1.5” W x 2.25” H [254 x 38.1 x 57.2 mm] SMA or N type
