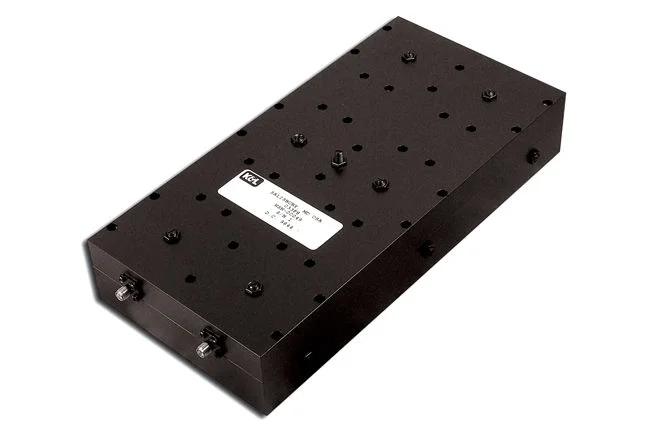

WSN-00049

WLL Notch Filter (DC-2300 & 2320-2500 MHz)


MPG_KLM_FL_BR_FIX_CA_MUL_WSN-00049

Overview

Product SKU:

Product Name: WSN-00049

40 dB Rejection Over 10 MHz Bandwidth

Low Insertion Loss - 2.0 dB maximum

100 watt CW Passband Power Handling

Ideal for Carrier Notching for Type Acceptance Testing

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Microwave RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Test Image Card

Product Specifications

PassbandsPassband Insertion LossRejection:Passband Power HandlingPassband Return LossOperating TemperatureStorage TemperatureOperating HumidityDimensions (excluding connectors)Connectors
2305-2315 MHz
DC-2300 MHz2320-2500 MHz2.0 dB maximum40 dB minimum100 watts CW10 dB minimum0 to +50°C-40 to +85°C0 to 90%, non-condensing10.01”L x 4.85”W x 2.75”H [254.3 x 123.2 x 69.9mm]SMA-F
