WSA-00140

GSM Interference Mitigation TX Notch Filter (880-915 & 943-980 MHz)

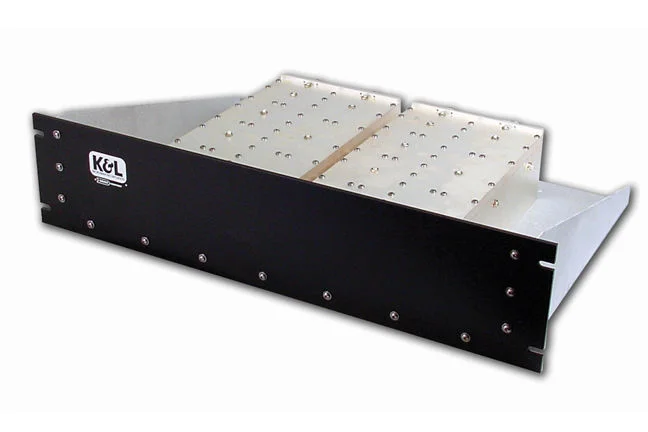

MPG_KLM_FL_BR_FIX_CA_MUL_WSA-00140

Overview

Product SKU ID :

Product Name  : WSA-00140

Elliptic Response Ceramic Notch Filter

Can be installed in Duplexed Antenna Feedline

Low Loss in Passbands - 0.75 dB Maximum

Specified Rejection 1 MHz from Passband - 25 dB Minimum

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

PassbandsPassband Insertion LossPassband Return LossRejection 932 to 942 MHzPassband Power Handling
880-915 MHz943-946 MHz946-980 MHzCWPeak Instantaneous
880 to 915 MHz943 to 980 MHz0.30 dB max.0.75 dB max.0.30 dB max.15 dB min.25 dB min.100 Watts1000 Watts
Characteristic ImpedanceDimensionsConnectorsOperating Temperature RangeOperating HumidityStorage Temperature RangeFinish
50 ohms (in passband)12.8"L x 7.5"W x 5.9"H (excluding connectors)N-F-10°C to +70°C0 to 90%, Non-condensing-40°C to +85°CShadow black paint
