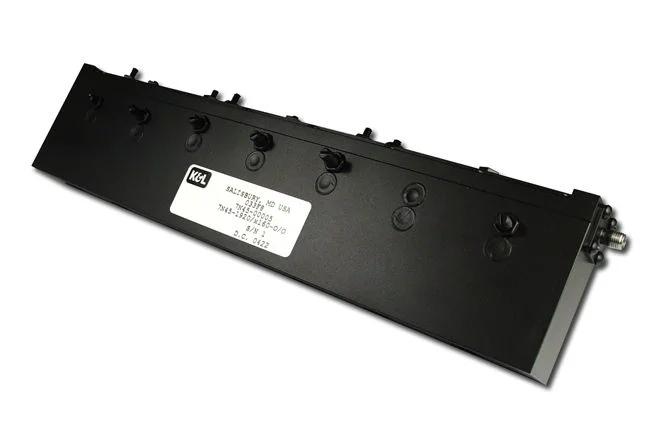

7N45-1920/X160-O/O

Bandreject Filter


MPG_KLM_FL_BR_FIX_CA_MUL_7N45-1920-X160-O-O

Overview

Product SKU ID :

Product Name : 7N45-1920/X160-O/O

Low Insertion Loss

Rugged Design for Field Testing

Temperature Stable

SMA Female Standard (N and TNC available)

Reject PCS Band 1850 - 1990 MHz (actual 1840 - 2000 MHz)

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Attenuation Band Attenuation Level Passband Low Passband High Passband Insertion Loss Passband Return Loss Connectors Dimensions
1840 - 2000 MHz 40 dB min. 1000 - 1790 MHz 2050 - 2800 MHz min. 1.0 dB (0.5 dB Typ) max. 15 dB min. SMA Female 11"L x 2.48"W x 1.0"H (less connectors)
Environmental Capabilities
Operating Temperature Storage Temperature Vibration Shock Relative Humidity
-20°C to +60°C -55°C to +85°C 10 G's, 10 to 2000 Hz 20 G's, ½ Sine, 11 ms 0 - 95 %
