POWER-POLE® Tunable Band Pass Filters

Overview

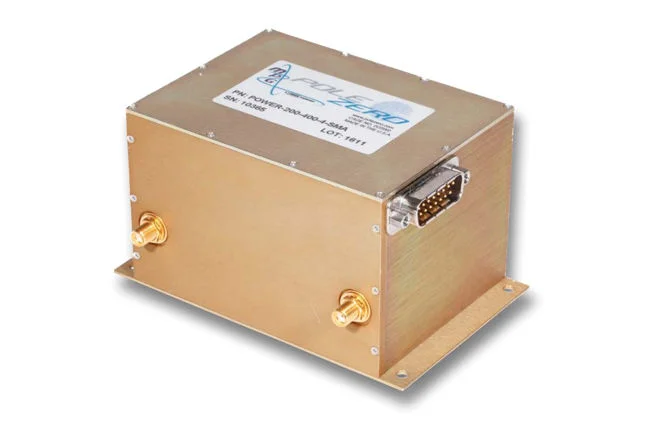

Versatility across several standard package sizes makes the POWER-POLE® series of Tunable Filters adaptable to the full range of applications where RF performance, increased power handling and the lowest insertion loss for a given bandwidth are required.

Frequency Range: HF, VHF, UHF band in bandpass and band reject or notch configurations.

Bandwidth: 1.8%-9.5%

Find Products Catalog

About The Technology

POWER-POLE®

The POWER-POLE® Filter series features 251 tunable positions per band, utilizing a high-quality pin diode switched capacitor array with a customized high voltage driver. When compared to the MPG MINI and MAXI Filters, the POWER-POLE® delivers higher performance and power handling in a Tunable Filter design.

Product Inquiry

Featured Brand

POLE/ZERO

Features & Specifications

POWER-POLE® Filter frequency: HF, UHF, VHF from 10 MHz to 400 MHz.

POWER-POLE® Filter features: POWER-POLE® Tunable Filters are available in bandwidths from 1.8% to 9.5% with insertion loss of 0.6 to 9.5. Filters can be constructed in x to x sections with an available Q range of x GHZ to x GHz , in tunable bandpass or band reject notch designs.

Offering high power and performance, the POWER-POLE® Tunable Filter delivers the following advantages:

A 3.25 x 2.5 x 1.5 inch enclosure (82.55 x 63.5 x 38.1 mm)
8-bit parallel interface with optional serial interface available

Several standard designs in various frequencies to support a myriad of applications

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

High RF power handling and superior performance make MPG’s POWER-POLE® Filter applicable for multiple markets, including defense, EW, radar, communications, satcom, and automated test equipment.
