MINI-SMT® Series


mini-smt

Overview

Product SKU ID:

Product Name : MINI-SMT® Series

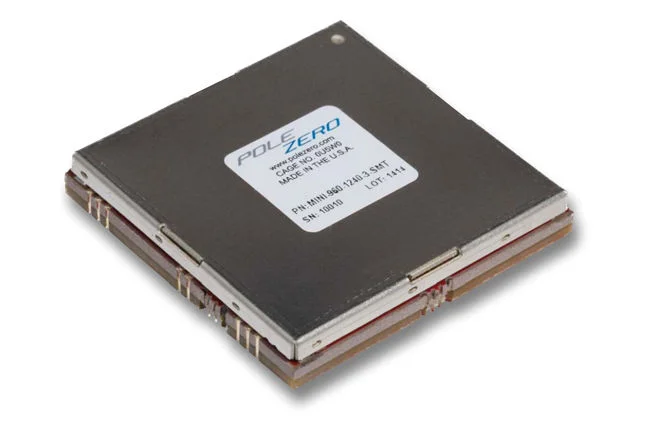

The new MINI-SMT™ tunable filter advances our popular MINI-POLE® Series by providing Surface Mount (SMT) capability along with the field proven RF power handling, low distortion and exceptional selectivity performance of our MINI-POLE® filters. MINI-SMT™ bandpass options are available from 700 MHz to 3 GHz.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the innovative and customizable nature of Pole/Zero's Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense, Aerospace, Communications, GPS, ATE, Space

MPG_Connecting_Protecting

Product Specifications

Frequency Coverage (8 bands):Input/Output Impedance:Inband RF Power Handling:

Inband Third Order

Intercept Point:

Shape Factor (30dB/3dB)

Tuning Control:Tuning Speed:DC Power:Operating Temperature Range :Center Frequency Drift:
700 MHz to 3000 MHz50Ω+30 dBm (input)+40 dBm (input)6 ±.5 (typical); 8 maxParallel or Serial25 µS (typical); 35 µS (max)

+3.3 VDC ≤250 mA

-40 to + 85°C80 PPM/°C
