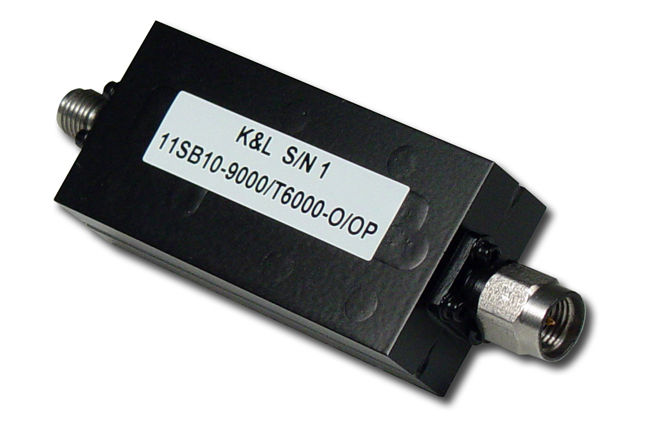

11SB10-9000/T6000-O/OP

Overview

Suspended Substrate Technology
SMA Connectors / Plated Thru Hole Boards
Applications: Radio Navigation, Military,
and Wideband Receivers.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because of the rugged package design, small size, high Q, and temperature stability, K&L Microwave’s Suspended Substrate Filters can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications Section

3 dB BW <1.0 dB loss @ f 0 1.8:1 VSWR across 100% of passband	Stopbands		Shock	Vibration	Temperature	Rel. Humidity
6 - 12 GHz	>50 dB	>50 dB	20 G’s, 1/2 Sine, 11Ms	10 G’s, 10 Hz - 2000 Hz	-55° C to 85° C	0 - 95%
	@ DC - 5.1 GHz	@ 13.8 GHz -
