INTERDIGITAL BANDPASS NOTCH FILTER

TCOM 418-01


TCOM-418-01

Overview

Product SKU ID :

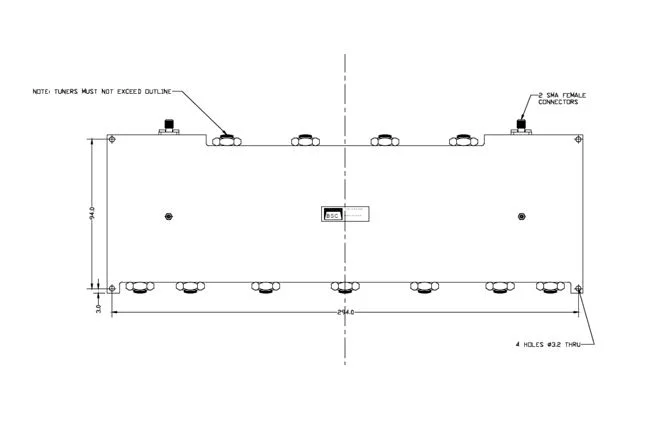

Product Name : TCOM 418-01

This filter is designed to cover the WCDMA GSM LTE Band 8 with low loss and high roll-off at the band edges. Primarily designed for use in GSM jammers and base stations with a high power handling capability.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Interdigital Filters are designed to the specifications of the user, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Passband Insertion Loss Return Loss Rejection from DC to 915 MHz Rejection from 980 MHz to 1.805 GHz Rejection from 1.805 to 2.7 GHz Power Handling Operating temperature Connectors External Finish
925 to 960 MHz 1.5 dB max 16 dB min 50 dB min 50 dB min 75 dB min 130 W CW max -20 to 60°C SMA Female Silver Plate
