X BAND TRANSMIT FILTER

SATCOM 375-01


SATCOM-375-01

Overview

Product SKU ID :

Product Name : SATCOM 375-01

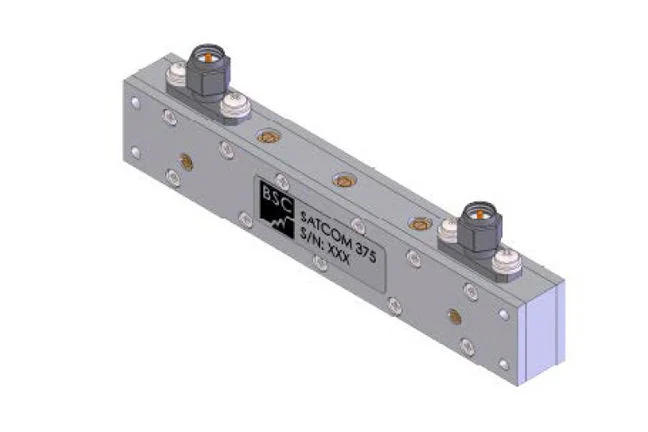

For compact X Band transmitter applications at medium power levels, this filter offers high power capability, flat group delay and low loss, whilst offering high levels of receiver protection in a compact form factor. Fitted with coaxial connectors, this filter lends itself to ease of integration within a compact transmit assembly.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Interdigital Filters are designed to the specifications of the user, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

Passband Insertion Loss Return Loss Group Delay Variation Rejection from DC to 6.95 GHz Rejection from 7.25 to 7.75 GHz Rejection from 9.0 to 16.8 GHz Power Handling Operating temperature Connectors External Finish
7.9 to 8.4 GHz 2.2 dB max 17 dB min 5.5 nS / Band 0.8 nS / 10 MHz 80 dB min 45 dB min 50 dB min 50 W max -30 to 60°C SMA Male Gloss White
