X BAND TRANSMIT FILTER

SATCOM 318-03


SATCOM-318-03

Overview

Product SKU ID :

Product Name : SATCOM 318-03

Designed for coaxial mounting within the transmitter assembly, this X Band Tx filter offers a low loss high isolation (protecting the LNB) alternative solution to waveguide Tx filters where space is at a premium.

BSC offer a wide range of components that have been designed for Satellite applications.

All applications are considered from Defence, Commercial and Scientific.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L Interdigital Filters are designed to the specifications of the user, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

MPG_Connecting_Protecting

Product Specifications

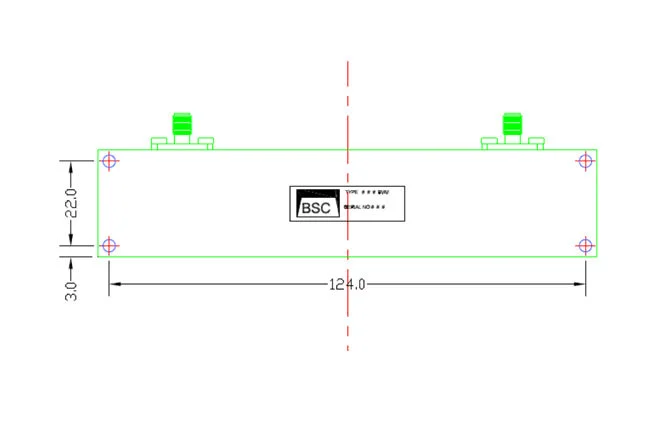

PassbandPassband FlatnessPassband Insertion Loss at BandedgesPassband Return LossRejection from DC to 7.25 GHzRejection from 7.25 to 7.75 GHzRejection from 9.0 to 14.8 GHzPower HandlingOperating temperatureDimensions (excluding connectors)ConnectorsExternal Finish
7.9 to 8.4 GHz± 0.2 dB max0.75 dB max16 dB min70 dB min50 dB min50 dB20 W-20 to 50°C130 x 30 x 13mm typicalSMA FemaleMatt Black
