INTERDIGITAL BANDPASS FILTER

RADAR 467-02

Overview

Product SKU ID :

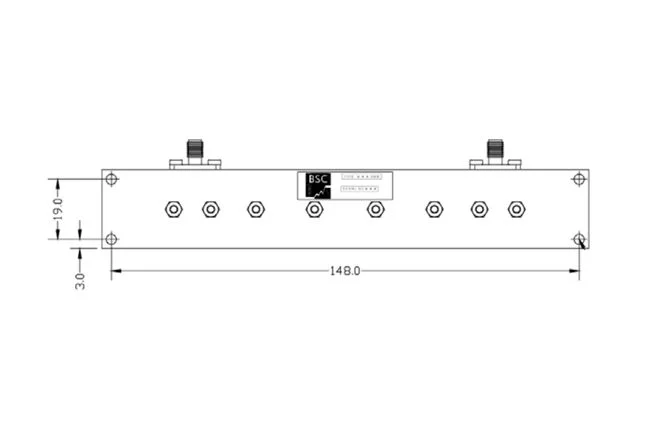

Product Name : RADAR 467-02

Designed specifically for X Band radars, its high power handling capability, extremely compact size and harmonic rejection capability ensure this coaxial filter is ideally suitable for X Band transmitters.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because BSC Filters are designed to the specifications of the user, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 17.8 to 19.0 GHz	Power Handling	Operating temperature	Connectors	External Finish
8.9 to 9.5 GHz	0.15 dB max	20 dB min	40 dB min	8 kW max	-40 to 85°C	SMA Female	Matt Black
