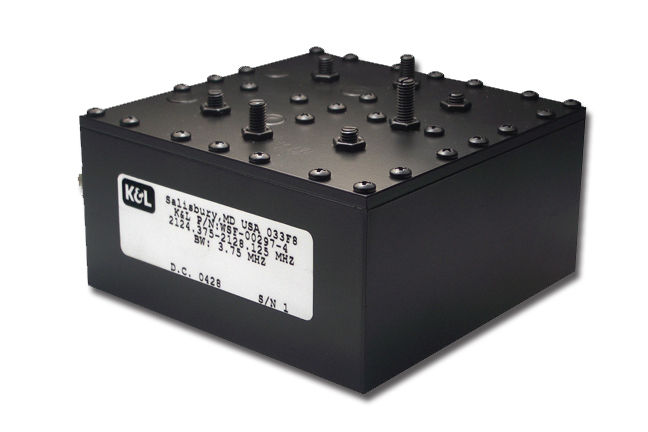

WSF-00297

Overview

Low Loss - 0.7 dB Typical
High Adjacent Channel Rejection; -10 dBc Typical @ 875 KHz from Passband Band Edges
Small Compact Size - Simple Mechanical Installation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Center Frequencyy (f 0)	Passband	Passband Insertion Loss	Passband Flatness	Passband Group Delay Variation	Passband Return Loss	Rejection		Passband Power Handling
Factory Tunable 2110 to 2170 MHz(Customer to Specify)	3.75 MHz	1.0 dB max.	0.55 dB max.	175 nS max.	14 dB min.	f 0 +/-2.75 MHz	f 0 +/- 20 MHz	CW	Peak Instantaneous
						-6 dBc min.	-27 dBc min.	40 watts	800 watts

Characteristic Impedance	Dimensions	Connectors	Operating Temperature Range	Operating Humidity	Storage Temperature Range	Finish/Construction	Mounting
50 ohms (in passband)	4.0"W x 4.0"D x 2.4"H(excluding connectors)	N-F	-20°C to +60°C	0 to 90%,(non-condensing)	-40°C to +85°C	Silver plated aluminum	6-32 x 0.35" Deep tapped holes on mounting surface (x4)
