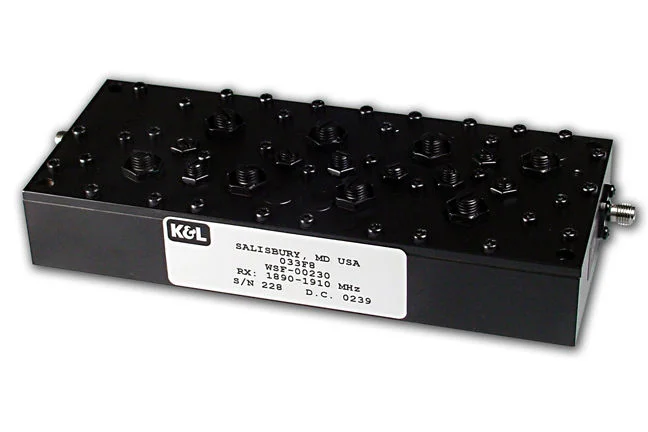

WSF-00230

Overview

Product SKU ID:

Product Name : WSF-00230

Compact Size — 6.3”L x 2.6”W x 1.3” H

90 dB Attenuation @ 1970 to 1990 MHz

Ultimate Rejection to 12.75 GHz

50 watts CW

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Market

Defense Aerospace Communications GPS

Product Specifications

Ant. To Rx Passband

Insertion Loss @ Passband

Return Loss @ Ant. & Rx Ports

Rejection

Dimensions

Connectors

Operating Temperature

Operating Humidity

Peak

1890-1910 MHz

1.5 dB

20 dB minimum

DC-1870 MHz

1870-1880 MHz

1920-1960 MHz

1970-1990 MHz

1990-3980 MHz

3980-6000 MHz

6000-12750 MHz

6.3”L x 2.6”W x 1.3”H (excluding connectors) [160 x 66 x 33mm]

SMA, Female

40 to 70°C

5-95%

50 watts

500 watts

56 dB minimum

40 dB minimum

90 dB minimum

60 dB minimum

35 dB minimum

20 dB minimum
