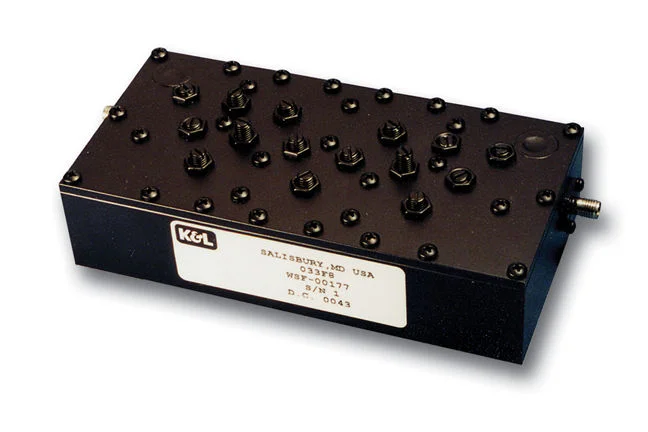

WSF-00177

Overview

Product SKU ID:

Product Name : WSF-00177

Excellent Selectivity / Low Insertion Loss

Small Size

Picocell, Microcell, and Macrocell base station installations

Handset or equipment test systems

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Market

Defense Aerospace Communications GPS

Product Specifications

Passbands	Passband Insertion Loss	Passband Return Loss	Rejection		Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
1710 to 1785 MHz	1.5 dB max.	15 dB min	DC to 1615MHz	1805 to 2700MHz	0 to +50°C	-40° to +85°C	0 to 90%, Relative, non-condensing	5.45”L x 2.67”W x1.67”H (excluding connectors): (355.6mm x 152.4mm x 55.9mm)	SMA-F
			50 dB min	50 dB min
