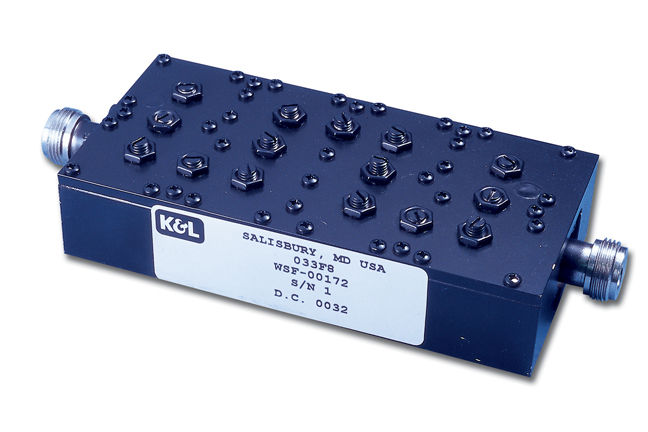

WSF-00172

Overview

Excellent selectivity, >60db @ 1900MHz, and >50db @ 2000MHz. (Bandedges + 20MHz)
Low Insertion Loss — 0.8dB Typical
Small Size

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss	Passband Flatness	Passband Return Loss	Rejection			Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
1920 to 1980 MHz	1.0dB max.	0.5db max.	15dB min.	DC - 1900MHz	2000 - 4000MHz	4000 - 6000MHz	-25 to +70°C	-40 to +85°C	0 to 90%, relative, non-condensing	4.79”L x 2.32”W x 1.31”H	N—F
				60dB min.	50dB min.	40dB min.
