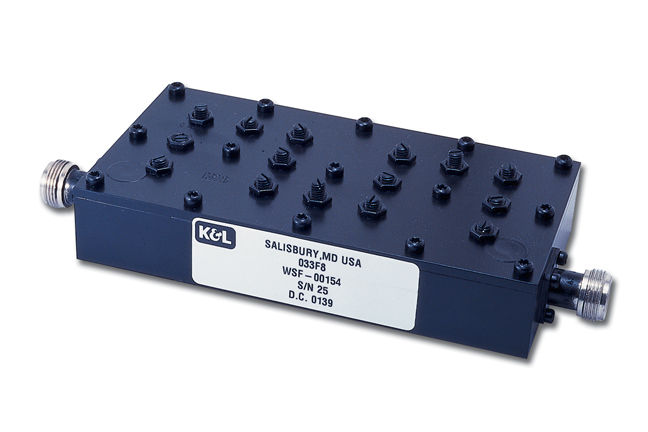

WSN-00154 - Sirius & XM Radio Notch Filter (2000-2310 & 2355-2500 MHz)

  • Blocks Out Very High Powered Terrestrial Transmit Signals
  • from Sirius & XM Stations
  • Efficient Low Loss Notch Filter Design -
  • Transparent to System Performance
  • Low Cost Cavity Construction and Compact Size
MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense AerospaceCommunicationsGPS

Test Image Card

Product Specifications Section

PassbandPassband Insertion LossPassband Return LossRejectionPower HandlingOperating TemperatureStorage TemperatureOperating HumidityDimensions(excluding connectors)Connectors
2110-2170 MHz1.0 dB max.15 dB min.DC-2090 MHz2190-4000 MHz4000-6510 MHzCWPeak Instantaneous-25° to +70°C-40° to +85°C0 to 90%, relative,
non-condensing
5.62”L x 2.94”W x 1.25”H[142.7 x 74.7 x 31.8mm]N-F
60 dB min.50 dB min.25 dB min.50 Watts1000 Watts
