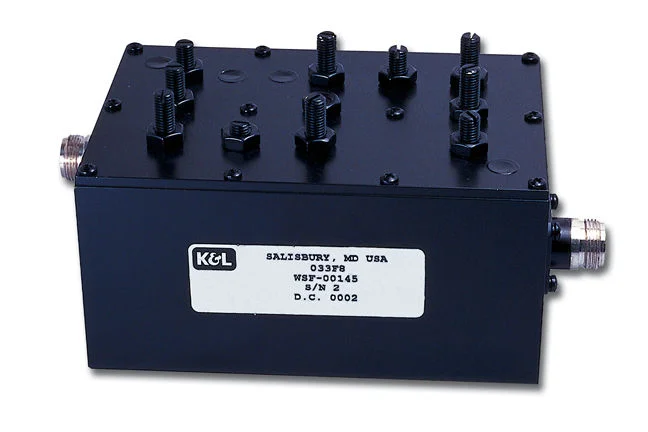

WSF-00145

Overview

High Rejection Symmetric to Passband
Low Insertion Loss - 0.4 dB typical
Small Size - 5.44” x 3.69” x 2.9”
Preselect for Macro or Micro Cellular Systems
General-Purpose Cellular Test Systems

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Passband Insertion Loss	Rejection		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
824-849 MHz	0.7 dB maximum	DC-800 MHz	869-2000 MHz	15 dB minimum	-20 to +70°C	-40 to +85°C	0 to 90%, Non-condensing	5.44”L x 3.69”W x 2.9”H (excluding connectors) [138.2 x 93.7 x 73.7mm]	N-F
		60 dB min	60 dB min
