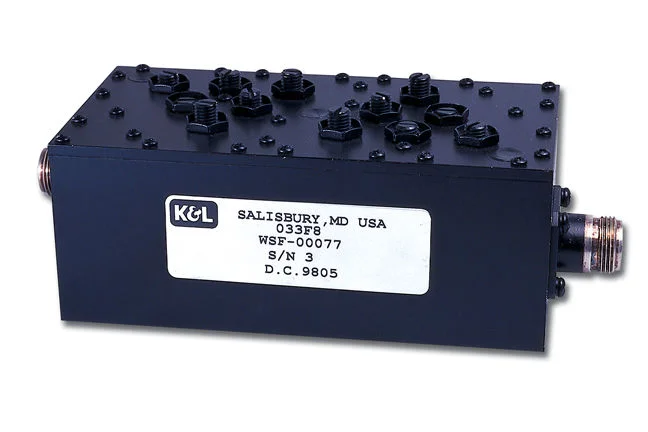

Product Name: WSF-00077

Very High Rejection - 80 dB typical

Low Insertion Loss - 0.6 dB typical @ 915 MHz

High Return Loss - 18 dB typical

Excellent Harmonic Rejection

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Market

Defense Aerospace Communications GPS

Product Specifications

Passband	Passband Insertion Loss	Rejection		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
824-849 MHz	0.7 dB max	DC-800 MHz	869-2000 MHz	15 dB min	-20° to +70°C	-40° to +85°C	0 to 90%, Realtive,non-condensing	5.44”L x 3.69”W x 2.9”H(excluding connectors): [138.2 x 93.7 x 73.7mm]	N-F
		60 dB min	60 dB min
