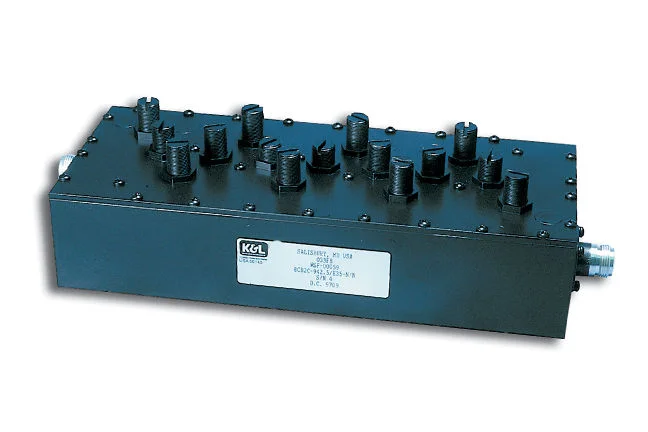

WSF-00059

Overview

Product Name : WSF-00059

High Return Loss - 18 dB Typical
Very Low Insertion Loss; 1.2 dB @ 925 Mhz Typical
Excellent Harmonic Rejection
Very High Rejection - 85 dB Typical

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Market

Defense Aerospace Communications GPS

Product Specifications

Passband

Passband Insertion Loss

Rejection

Passband Return Loss

Maximum Power Handling

Intermodulation Products

Operating Temperature

Storage Temperature

Operating Humidity

Dimensions

Connectors

925-960 MHz

1.5 dB max

DC-915 MHz

1000-2880 MHz

15 dB min

Peak Instantaneous

-110 dBm max. with two +34 dBm carriers

0° to +50°C

-40° to +85°C

0 to 90%, Non-condensing

3.9”W x 9.35”D x 3.0”H
(excluding connectors): [99.1 x 237.5 x 76.2mm]

N-F

80 dB min

60 dB min

10 Watts

40 Watts
