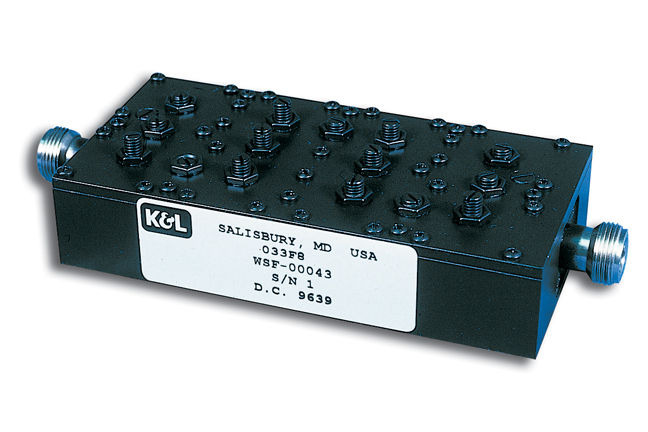

WSF-00043

Overview

Compact, Low Profile Design
Low Insertion Loss, <0.7 dB typical
Fullband, Highly Selective Performance
Wide Operating Temperature Range

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss	Rejection			Passband Return Loss	Maximum Power Handling		Intermodulation Products
1930-1990 MHz	1.0 dB max.	DC - 1910 MHz	2010-4000 MHz	4000-6000 MHz	15 dB min.	CW	Peak Instantaneous	-110 dBm max. with two
		60 dB min.	50 dB min.	40 dB min.		50 Watts	100 Watts

Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
-25°C to +70°C	40°C to +85°C	0 to 90%,(Non-condensing)	4.79”W x 2.32”D x 1.31”H[121.7 x 58.9 x 33.3mm]	N-F
