WSF-00029

Overview

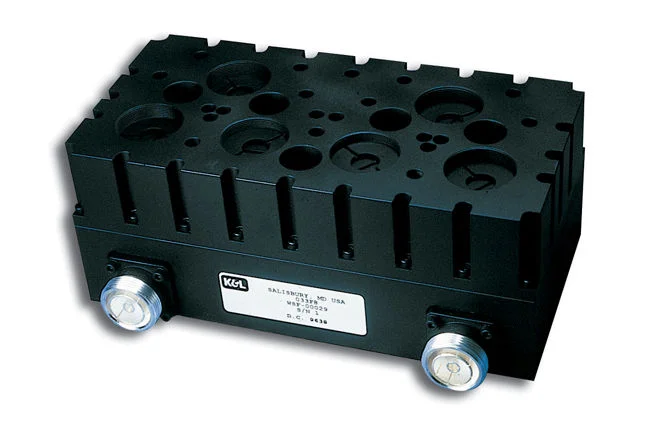

Product Name : WSF-00029

High Power Handling
Very Low Insertion Loss; 0.30 dB typical
Excellent Harmonic Rejection
Very High Return Loss; 22 dB typical

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband

Passband Insertion Loss

Rejection

Passband Return Loss

Maximum Power Handling

Intermodulation Products

Operating Temperature

Storage Temperature

Operating Humidity

Dimensions

Connectors

869 - 894 MHz

0.5 dB max

DC - 849 MHz

960 - 2682 MHz

18 dB min

Peak Instantaneous

0°C to +50°C

40°C to +85°C

0 to 90%,
Non-condensing

8.64”W x 4.26”D x
4.0”H
(excluding connectors) [216.5 x 108.3 x
101.6mm]

7/16 DIN female

75 dB min

60 dB min

500 Watts

20,000 Watts
