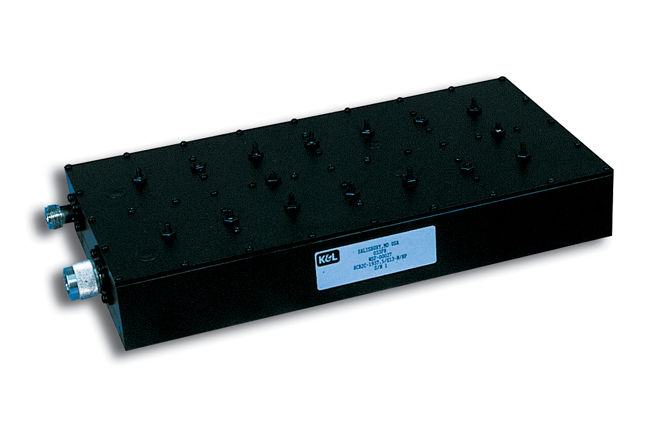

WSF-00027

Overview

PCS Band Specific
Increased Rejection of Adjacent Channels
Temperature Stabilized
Holds Specifications at Thermal Extremes
Stopband Rejection to 4000 MHz

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss:		Rejection:				Passband Return Loss	Maximum Power Handling:
1930-1945 MHz	1931-1944 MHz 2.0 dB maximum	1930-1931 & 1944-1945 MHz 4.0 dB maximum	DC-1865 MHz	1865-1928.35 MHz	1946.65-2010 MHz	2010-4000 MHz	14 dB minimum	CW	Peak Instantaneous
			80 dB minimum	28 dB minimum	28 dB minimum	80 dB minimum		50 watts	800 watts

Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
0 to +50°C	-40 to +70°C	0 to 90% non-condensing	11.32”W x 5.74”D x 2.0”H [287.5 x 145.8 x 50.8mm]	Input	Output
				N-M	N-F
