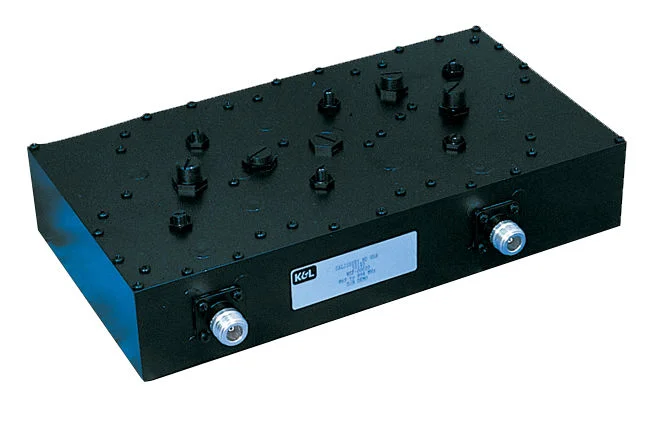

WSF-00020

Overview

Product Name : WSF-00020

High Power Handling
Very Low Insertion Loss; <0.25 dB typical
Symmetric Rejection on Both Sides of the Passband
Very High Return Loss; 22 dB typical

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband	Passband Insertion Loss	Rejection		Passband Return Loss	Maximum Power Handling		Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
869 - 894 MHz	0.5 dB max	DC - 849 MHz	960 - 2000 MHz	18 dB min	CW	Peak Instantaneous	0°C to +50°C	-40°C to +85°C	0 to 90%, Non-condensing	10.875”W x 5.891”D x 3.0”H (excluding connectors) [276.2 x 149.6 x 76.2mm]	N-F
		75 dB min	30 dB min		500 Watts	11,000 Watts
